Description:

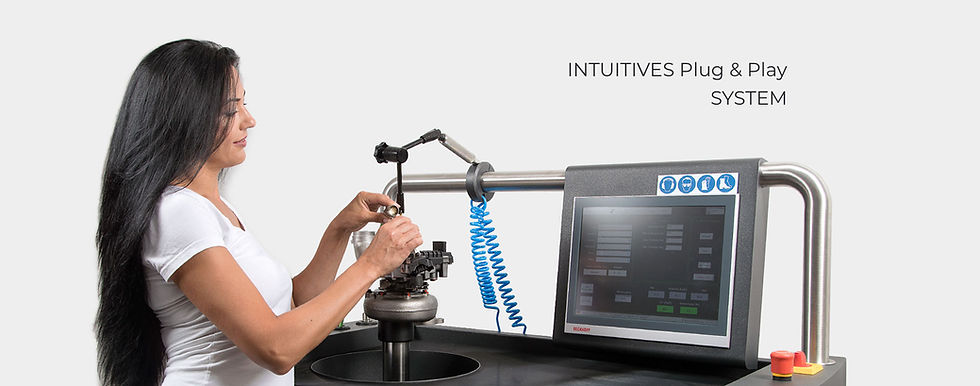

Flow bench for calibration
the variable turbine geometry of turbochargers

Technical data:

• Voltage: 230V / 50 Hz

• Current: 10A

• Dimensions mm: L:1150 W:690 H:1430

• Weight: 220 kg

Scope of delivery:

• TM-A adapter system ®
  (complete for approx. 95% of all turbocharger types incl.)

• Industrial PC

• Windows Embedded (industry) on board

• Network printer (optional)

• Monitor (industrial touchscreen 7”)

• Dataset for over 4,000 turbocharger references on board

• Internet connection on board

• Compressor fuse

• Operating instructions

• USB update (optional)

• Server Update
